Projecting Signs (PJP Series)

Made in the USA
Double sided aluminum frame extrusions with end caps and wall brackets

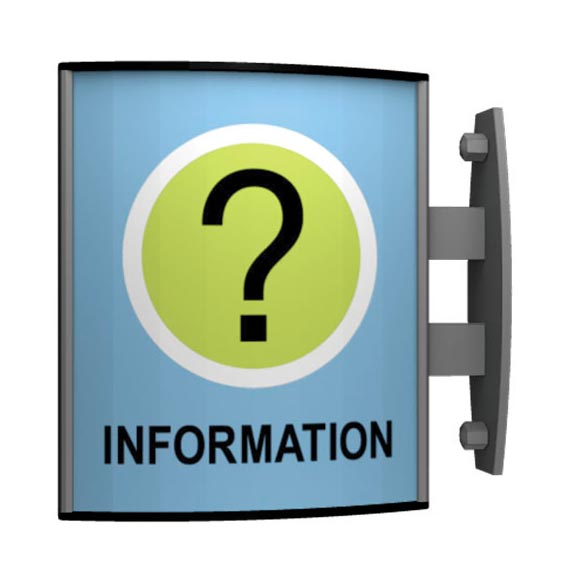

Image shown PJP6

Double sided aluminum projecting sign frame

Decorative nut cap should be tighten by hand only

Wayfinding wall Projecting Sign frame PJP Series

Black finish with black end caps. Doesn't come with dividing strips, black strips are printed in the insert graphic.

Curved, double sided aluminum extrusion Projecting Sign frame

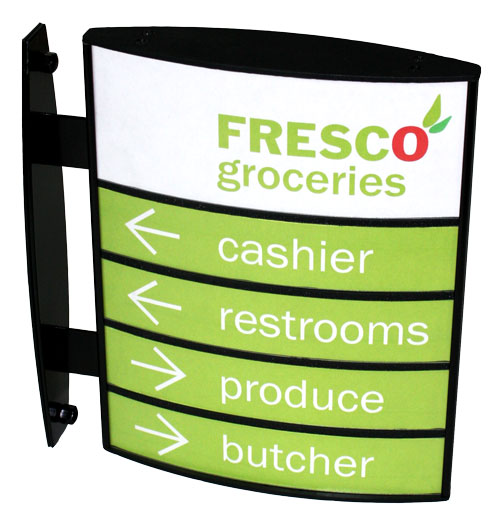

Dividing strips available for extra cost. Lenses would be pre-cut to fit each graphic section with your extra dividing strips.

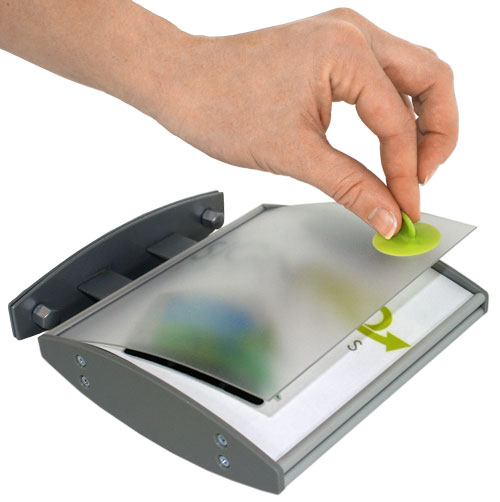

Projecting Sign frame comes with overlay lens and suction cup

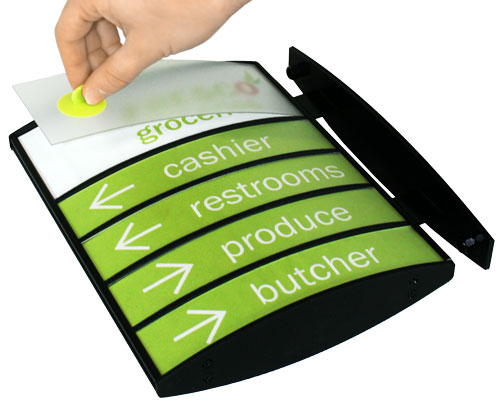

Suction cup included for easy graphic change

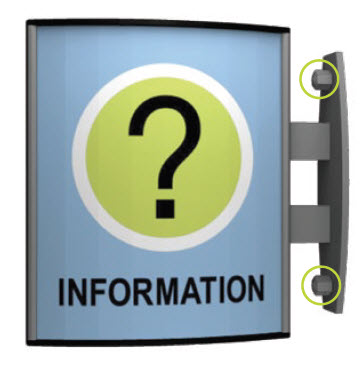

Decorative nut cap on wall brackets

Decorative nut cap should be tighten by hand only

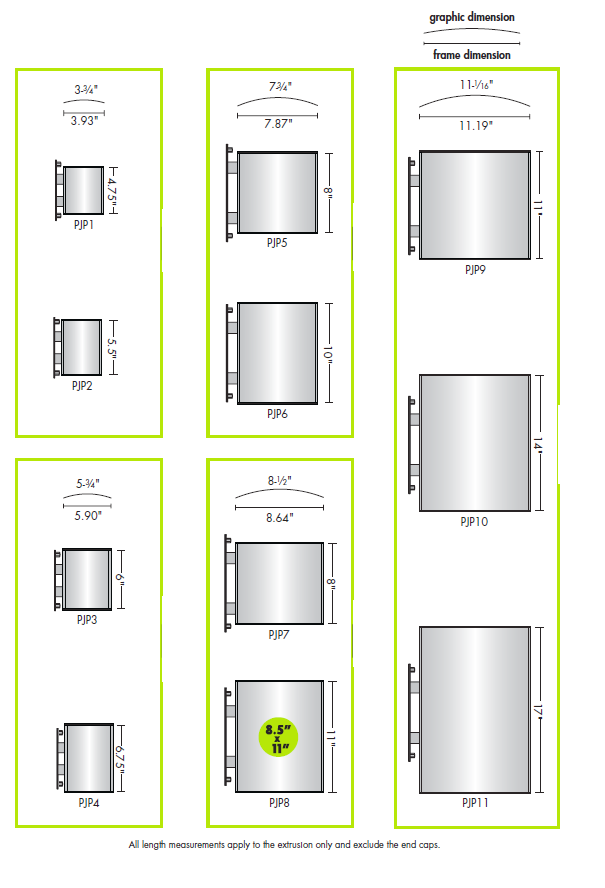

Curved, double sided aluminum extrusion projecting sign frame PJP series size chart

PJP series size chart

  • Wall-mount aluminum sign frames with steel bracket
  • Double-sided curved corridor design

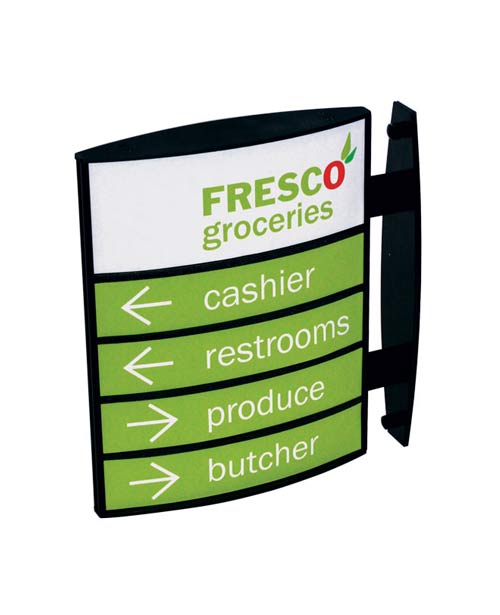

  • Left-to-right curve orientation
  • Top and bottom aluminum end caps
  • Durable curved aluminum body in anodized silver or powder-coated black finish
  • Choice of black or grey impact-modified plastic end caps
  • Ships fully assembled
  • Decorative nut caps included
  • Includes clear non-glare lens and suction cup
  • Indoor use only; for outdoor installation, use UV-rated graphics to minimize condensation (warranty void if used outdoors)
Model Graphic Width Graphic Height Lens End Cap Material Color
PJP1 3-3/4" w 4-3/4" h Clear lens included Black or Grey end caps Aluminum body, Steel plate, Plastic end cap Eggshell Silver or Shiny Black
PJP2 5-1/2" h
PJP3 5-3/4 w 6" h
PJP4 6-3/4" h
PJP5 7-3/4" w 8" h
PJP6 10" h
PJP7 8-1/2" w 8" h
PJP8 11" h
PJP9 11-1/16" w 11" h
PJP10 14" h
PJP11 17" h
Image Item Our Price Option / Quantity / Buy
Wayfinding Signs - Projecting Sign: PJP1 Projecting Sign: PJP1
$66.04
Wayfinding Signs - Projecting Sign: PJP2 Projecting Sign: PJP2
$67.48
Wayfinding Signs - Projecting Sign: PJP3 Projecting Sign: PJP3
$73.81
Wayfinding Signs - Projecting Sign: PJP4 Projecting Sign: PJP4
$75.44
Wayfinding Signs - Projecting Sign PJP5 Projecting Sign: PJP5
$94.06
curved wall mount projecting sign frame PJP6 Projecting Sign: PJP6
$103.11
Wayfinding Signs - Projecting Sign: PJP7 Projecting Sign: PJP7
$97.36
8.5x11 wall mount Projecting sign frame Projecting Sign: PJP8
$111.07
Wayfinding Signs - Projecting Sign: PJP9 Projecting Sign: PJP9
$138.72
Wayfinding Signs - Projecting Sign: PJP10 Projecting Sign: PJP10
$162.56
Double sided projecting sign frame 11x17 Projecting Sign: PJP11
$186.54

Double-Sided Curved Corridor Wall Sign with Aluminum Frame

This double-sided curved corridor sign is designed for wall mounting with a sturdy steel bracket and features a high-quality aluminum body available in anodized silver or powder-coated black.

The sleek left-to-right curve enhances visibility in hallways and public spaces. Choose from black or grey impact-resistant plastic end caps, with decorative nut caps included for a finished look. Each sign includes a clear non-glare lens and suction cup for easy graphic changes.

Note: Ships fully assembled. For indoor use only—use UV-friendly graphics if installed outdoors to prevent condensation and damage.

Details

Hardware Warranty One Year
Production Time Usually ships in 3 business days.
Graphic Printing The base price includes hardware only. Graphics are sold separately.
Product Category Wayfinding Signs
Product Origin Made in the USA
Product Summary Wall-mounted double-sided curved corridor sign with aluminum body and steel bracket. Includes non-glare lens and suction cup for easy updates. Ideal for hallway

Instructions

Projecting Signs (PJP Series) File Size: 1010.3 KB Download

Template files

Projecting Signs (PJP Series) 11x17 File Size: 693.54 KB Download
